964324-1
Manufacturer:
TE Connectivity
Mfr.Part #:
964324-1
Datasheet:
Description:

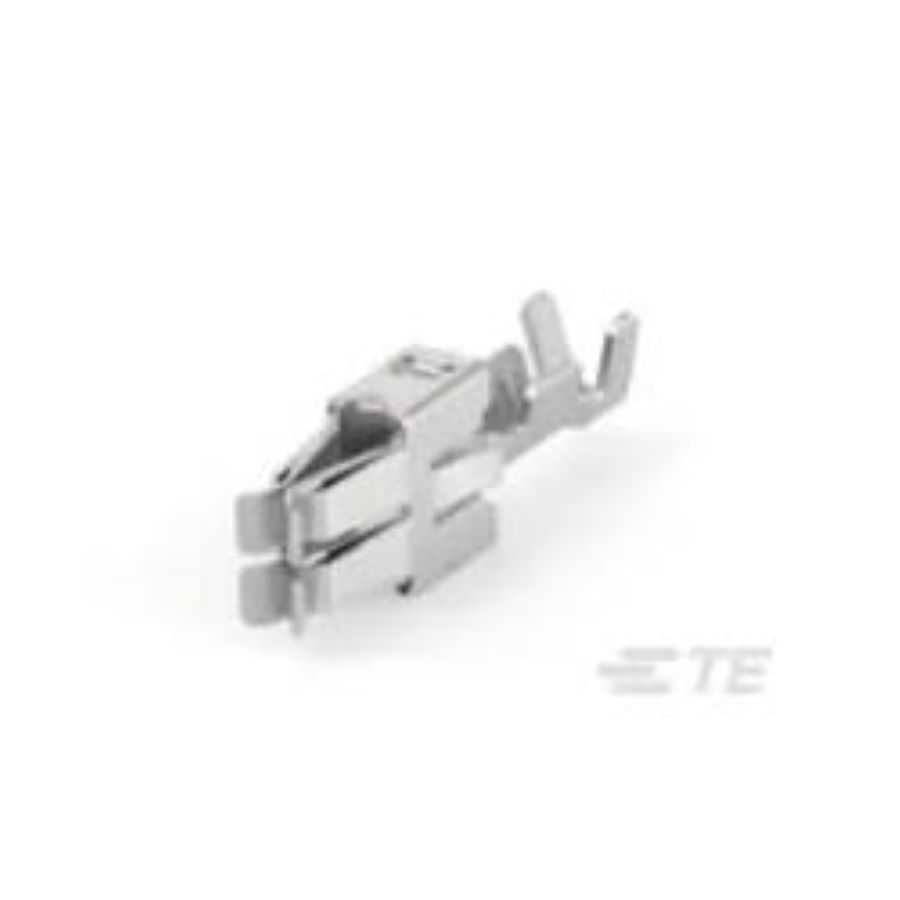

Automotive Connectors Cable Receptacle 20 AWG to 17 AWG
| Parameter | Value |
|---|---|
| Length | 20 mm |
| Termination | Crimp |
| Max Operating Temperature | 130 °C |
| Min Operating Temperature | -40 °C |
| Height | 6.85 mm |
| Packaging | Reel |
| Radiation Hardening | No |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper, Ferrite |
| Current Rating | 40 A |
| Approvals | IEC, VDE |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Receptacle |
| Shielding | Unshielded |
| Connector Type | Connector, PCB, Signal |
| Wire/Cable Gauge | 20 AWG to 17 AWG |
| Wire Gauge (Max) | 20 AWG |
| Wire Gauge (Min) | 17 AWG |
| Insulation Diameter | 2.1082 mm |
| Mating Tab Width | 6.2992 mm |
| Tab Thickness | 800 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Wire Gauge Range | 20 AWG to 17 AWG |
| RoHS | Compliant |
Stock: 10382
Distributors
pcbx
pcbxUnit Price$1.18636
Ext.Price$1.18636
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.18636 | $1.18636 |
| 10 | $0.59318 | $5.93180 |
| 25 | $0.45629 | $11.40725 |
| 50 | $0.35099 | $17.54950 |
| 100 | $0.29249 | $29.24900 |
| 300 | $0.24374 | $73.12200 |
| 500 | $0.20312 | $101.56000 |
| 1000 | $0.16927 | $169.27000 |
| 3000 | $0.15819 | $474.57000 |
| 5000 | $0.14783 | $739.15000 |
| 10000 | $0.13815 | $1381.50000 |
| 30000 | $0.12910 | $3873.00000 |
